Specifications for

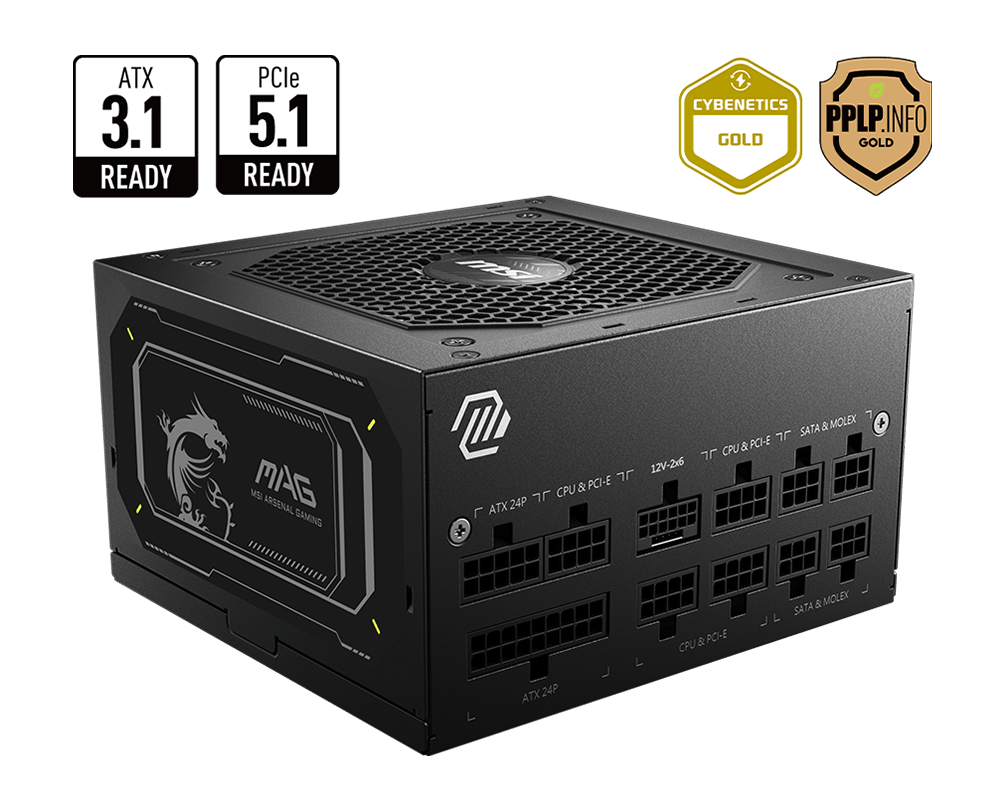

MAG A850GL PCIE5 II
Model Name
Model Name
TORX FAN 12CM
WEIGHT (CARD)
WEIGHT (CARD)
169g
Dimensions
Dimensions
120mm x 120mm x 25.6mm
Modular
Modular
Yes (full modular)
Fan Bearing
Fan Bearing
Fluid Dynamic Bearing
Bearing Type
Bearing Type
Hydro-Dynamic Bearing
Power Excursion
Power Excursion
1700W (*up to 200% of the PSU's rated power for 100μs)
Potência Watt
Potência Watt
850W
Rated Speed
Rated Speed
500 - 1800 ±15% RPM
Voltagem de Entrada
Voltagem de Entrada
100~240 VAC
Air Flow
Air Flow
19.79 - 71.27 CFM
Static Air Pressure
Static Air Pressure
0.16 - 2.09 mm-H20
Frequência de entrada
Frequência de entrada
47-63Hz
EPS (4+4 pin)
EPS (4+4 pin)
2
Eficiência
Eficiência
80 PLUS Gold (up to 90%)
Connector
Connector
4-Pin PWM/DC
PCI-E 5.1 (16 pin)
PCI-E 5.1 (16 pin)
1
ATX (24 pin)
ATX (24 pin)
1
Life Expectancy
Life Expectancy
MTTF 150,000 Hours (25℃)
Tamanho do ventilador
Tamanho do ventilador
120 mm
PCI-E (6+2 pin)
PCI-E (6+2 pin)
4
Dimensões
Dimensões
140 x 150 x 86 mm
SATA (15 pin)
SATA (15 pin)
8
Tipo de PFC
Tipo de PFC
Active PFC
MOLEX (4 pin)
MOLEX (4 pin)
4
Proteção
Proteção
OCP / OVP / OPP / OTP / SCP / UVP
FDD (4 pin)
FDD (4 pin)
1
